Monitoring

Introduction

Section titled “Introduction”

As a cluster administrator, it may benefit you to have monitoring capabilities over both the state and execution of cluster-applied Kyverno policies. This includes monitoring over any applied changes to policies, any activity associated with incoming requests, and any results produced as an outcome. If enabled, monitoring will allow you to visualize and alert on applied policies, and is critical to overall cluster observability and compliance.

In addition, you can specify the scope of your monitoring targets to either the rule, policy, or cluster level, which enables you to extract more granular insights from collected metrics.

Installation and Setup

Section titled “Installation and Setup”

When you install Kyverno via Helm, additional services are created inside the kyverno Namespace which expose metrics on port 8000.

Terminal window
$ values.yaml


admissionController:
  metricsService:
    create: true
  # ...


backgroundController:
  metricsService:
    create: true
  # ...


cleanupController:
  metricsService:
    create: true
  # ...


reportsController:
  metricsService:
    create: true
  # ...

By default, the service type is going to be ClusterIP meaning that metrics can only be scraped by a Prometheus server sitting inside the cluster.

In some cases, the Prometheus server may sit outside your workload cluster as a shared service. In these scenarios, you will want the kyverno-svc-metrics Service to be publicly exposed so as to expose the metrics (available at port 8000) to your external Prometheus server.

Services can be exposed to external clients via an Ingress, or using LoadBalancer or NodePort Service types.

To expose your kyverno-svc-metrics service publicly as NodePort at host’s/node’s port number 8000, you can configure your values.yaml before Helm installation as follows:

Terminal window
admissionController:
  metricsService:
    create: true
    type: NodePort
    port: 8000
    nodePort: 8000
  # ...


backgroundController:
  metricsService:
    create: true
    type: NodePort
    port: 8000
    nodePort: 8000
  # ...


cleanupController:
  metricsService:
    create: true
    type: NodePort
    port: 8000
    nodePort: 8000
  # ...


reportsController:
  metricsService:
    create: true
    type: NodePort
    port: 8000
    nodePort: 8000
  # ...

To expose the kyverno-svc-metrics service using a LoadBalancer type, you can configure your values.yaml before Helm installation as follows:

Terminal window
admissionController:
  metricsService:
    create: true
    type: LoadBalancer
    port: 8000
    nodePort:
  # ...


backgroundController:
  metricsService:
    create: true
    type: LoadBalancer
    port: 8000
    nodePort:
  # ...


cleanupController:
  metricsService:
    create: true
    type: LoadBalancer
    port: 8000
    nodePort:
  # ...


reportsController:
  metricsService:
    create: true
    type: LoadBalancer
    port: 8000
  nodePort:
  # ...

Configuring the metrics

Section titled “Configuring the metrics”

While installing Kyverno via Helm, you also have the ability to configure which metrics to expose, this configuration will be stored in the kyverno-metrics ConfigMap.

You can configure which Namespaces you want to include and/or exclude for metric exportation when configuring your Helm chart. This configuration is useful in situations where you might want to exclude the exposure of Kyverno metrics for certain Namespaces like test or experimental Namespaces. Likewise, you can include certain Namespaces if you want to monitor Kyverno-related activity for only a set of certain critical Namespaces. Exporting the right set of Namespaces (as opposed to exposing all Namespaces) can end up substantially reducing the memory footprint of Kyverno’s metrics exporter. Moreover, you can also configure the exposure of specific metrics, disabling them completely or dropping some label dimensions. For Histograms, you can change the default bucket boundaries or configure it for a specific metric as well.

...
metricsConfig:
  # 'namespaces.include': list of namespaces to capture metrics for. Default: all namespaces included.
  # 'namespaces.exclude': list of namespaces to NOT capture metrics for. Default: [], none of the namespaces excluded.
  # `exclude` takes precedence over `include` in cases when a Namespace is provided under both.
  namespaces:
    include: []
    exclude: []


  # Configures the bucket boundaries for all Histogram metrics, the value below is the default.
  bucketBoundaries:
    [0.005, 0.01, 0.025, 0.05, 0.1, 0.25, 0.5, 1, 2.5, 5, 10, 15, 20, 25, 30]


  # Per Metric configuration, allows disabling metrics, dropping labels and change the bucket boundaries.
  # For detailed information about these metrics, see the [Metrics Reference](/docs/reference/metrics)
  metricsExposure:
    # Counter disabled
    # See [Policies and Rules Count](/docs/reference/metrics#policies-and-rules-count) for details
    kyverno_policy_rule_info_total:
      enabled: false
    # Histogram disabled
    # See [Admission Review Latency](/docs/reference/metrics#admission-review-latency) for details
    kyverno_admission_review_duration_seconds:
      enabled: false
    # Counter with customized dimensions
    # See [Admission Requests Count](/docs/reference/metrics#admission-requests-count) for details
    kyverno_admission_requests:
      disabledLabelDimensions:
        ['resource_namespace', 'resource_kind', 'resource_request_operation']
    # Histogram with custom boundaries and dimensions
    # See [Policy Rule Execution Latency](/docs/reference/metrics#policy-rule-execution-latency) for details
    kyverno_policy_execution_duration_seconds:
      disabledLabelDimensions:
        ['resource_kind', 'resource_namespace', 'resource_request_operation']
      bucketBoundaries: [0.005, 0.01, 0.025]
...

Disabling metrics

Section titled “Disabling metrics”

Some metrics may generate an excess amount of data which may be undesirable in situations where this incurs additional cost. Some monitoring products and solutions have the ability to selectively disable which metrics are sent to collectors while leaving others enabled.

Kyverno configuration side

Section titled “Kyverno configuration side”

As described above, Kyverno allows disabling metrics, dropping labels and changing the bucket boundaries by changing the kyverno-metrics ConfigMap, please refer to the example provided.

DataDog OpenMetrics side

Section titled “DataDog OpenMetrics side”

Disabling select metrics with DataDog OpenMetrics can be done by annotating the Kyverno Pod(s) as shown below.

Note: For detailed information about these metrics, see the Metrics Reference:

apiVersion: v1
kind: Pod
metadata:
  annotations:
    ad.datadoghq.com/kyverno.checks: |
      {
        "openmetrics": {
          "init_config": {},
          "instances": [
            {
              "openmetrics_endpoint": "http://%%host%%:8000/metrics",
              "namespace": "kyverno",
              "metrics": [
                {"kyverno_policy_rule_info_total": "policy_rule_info"},
                {"kyverno_admission_requests": "admission_requests"},
                {"kyverno_policy_changes": "policy_changes"}
              ],
              "exclude_labels": [
                "resource_namespace"
              ]
            },
            {
              "openmetrics_endpoint": "http://%%host%%:8000/metrics",
              "namespace": "kyverno",
              "metrics": [
                {"kyverno_policy_results": "policy_results"}
              ]
            }
          ]
        }
      }

The Kyverno Helm chart supports including additional Pod annotations in the values file as shown in the below example.

Note: For detailed information about these metrics, see the Metrics Reference:

podAnnotations:
  # https://github.com/DataDog/integrations-core/blob/master/openmetrics/datadog_checks/openmetrics/data/conf.yaml.example
  # Note: To collect counter metrics with names ending in `_total`, specify the metric name without the `_total`
  ad.datadoghq.com/kyverno.checks: |
    {
      "openmetrics": {
        "init_config": {},
        "instances": [
          {
            "openmetrics_endpoint": "http://%%host%%:8000/metrics",
            "namespace": "kyverno",
            "metrics": [
              {"kyverno_policy_rule_info_total": "policy_rule_info"},
              {"kyverno_admission_requests": "admission_requests"},
              {"kyverno_policy_changes": "policy_changes"}
            ],
            "exclude_labels": [
              "resource_namespace"
            ]
          },
          {
            "openmetrics_endpoint": "http://%%host%%:8000/metrics",
            "namespace": "kyverno",
            "metrics": [
              {"kyverno_policy_results": "policy_results"}
            ]
          }
        ]
      }
    }

OpenTelemetry Setup

Section titled “OpenTelemetry Setup”

Setting up OpenTelemetry requires configuration of a few YAML files. The required configurations are listed below.

Install Cert-Manager

Section titled “Install Cert-Manager”

Install Cert-Manager by following the documentation.

Config file for OpenTelemetry Collector

Section titled “Config file for OpenTelemetry Collector”

Create a configmap.yaml file in the kyverno Namespace with the following content:

apiVersion: v1
kind: ConfigMap
metadata:
  name: collector-config
  namespace: kyverno
data:
  collector.yaml: |
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: ":8000"
    processors:
      batch:
        send_batch_size: 10000
        timeout: 5s
    extensions:
      health_check: {}
    exporters:
      jaeger:
        endpoint: "jaeger-collector.observability.svc.cluster.local:14250"
        tls:
          insecure: true
      prometheus:
        endpoint: ":9090"
      logging:
        loglevel: debug
    service:
      extensions: [health_check]
      pipelines:
        traces:
          receivers: [otlp]
          processors: []
          exporters: [jaeger, logging]
        metrics:
          receivers: [otlp]
          processors: [batch]
          exporters: [prometheus, logging]
  • Here the Prometheus exporter endpoint is set as 9090 which means Prometheus will be able to scrape this service on the given endpoint to collect metrics.
  • Similarly, the Jaeger endpoint references a Jaeger collector at the default Jaeger endpoint 14250.

The Collector Deployment

Section titled “The Collector Deployment”

Create a deployment.yaml file in the kyverno Namespace with the following content:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: opentelemetrycollector
  namespace: kyverno
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: opentelemetrycollector
  template:
    metadata:
      labels:
        app.kubernetes.io/name: opentelemetrycollector
    spec:
      containers:
        - name: otelcol
          args:
            - --config=/conf/collector.yaml
          image: otel/opentelemetry-collector:0.50.0
          volumeMounts:
            - name: collector-config
              mountPath: /conf
      volumes:
        - configMap:
            name: collector-config
            items:
              - key: collector.yaml
                path: collector.yaml
          name: collector-config

This references the collector defined in the configmap.yaml above. Here we are using a Deployment with just a single replica. Ideally, a DaemonSet is preferred. Check the OpenTelemetry documentation for more deployment strategies.

The Collector Service

Section titled “The Collector Service”

Finally, create a service.yaml file in the kyverno Namespace with the following content:

apiVersion: v1
kind: Service
metadata:
  name: opentelemetrycollector
  namespace: kyverno
spec:
  ports:
    - name: otlp-grpc
      port: 8000
      protocol: TCP
      targetPort: 8000
    - name: metrics
      port: 9090
      protocol: TCP
      targetPort: 9090
  selector:
    app.kubernetes.io/name: opentelemetrycollector
  type: ClusterIP

This defines a Service for the discovery of the collector Deployment.

Setting up Kyverno and passing required flags

Section titled “Setting up Kyverno and passing required flags”

See the installation instructions for Kyverno. Depending on the method used, the following flags must be passed.

  • Pass the flag metricsPort to defined the OpenTelemetry Collector endpoint for collecting metrics.
  • Pass the flag otelConfig=grpc to export the metrics and traces to an OpenTelemetry collector on the metrics port endpoint

Setting up a secure connection between Kyverno and the collector

Section titled “Setting up a secure connection between Kyverno and the collector”

Kyverno also supports setting up a secure connection with the OpenTelemetry exporter using TLS on the server-side (on the collector). This will require you to create a certificate-key pair for the OpenTelemetry collector from some private CA and then saving the certificate as a Secret in your Kyverno Namespace with key named ca.pem.

Considering you already have the server.pem and server-key.pem files along with the ca.pem file (you can configure these using a tool such as OepnSSL or cfssl). Your OpenTelemetry configmap.yaml and deployment.yaml files will also change accordingly:

configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: collector-config
  namespace: kyverno
data:
  collector.yaml: |
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: ":8000"
            tls:
              cert_file: /etc/ssl/certs/server/server.pem
              key_file: /etc/ssl/certs/server/server-key.pem
              ca_file: /etc/ssl/certs/ca/ca.pem
    processors:
      batch:
        send_batch_size: 10000
        timeout: 5s
    extensions:
      health_check: {}
    exporters:
      jaeger:
        endpoint: "jaeger-collector.observability.svc.cluster.local:14250"
        tls:
          insecure: true
      prometheus:
        endpoint: ":9090"
      logging:
        loglevel: debug
    service:
      extensions: [health_check]
      pipelines:
        traces:
          receivers: [otlp]
          processors: []
          exporters: [jaeger, logging]
        metrics:
          receivers: [otlp]
          processors: [batch]
          exporters: [prometheus, logging]

deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: opentelemetrycollector
  namespace: kyverno
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: opentelemetrycollector
  template:
    metadata:
      labels:
        app.kubernetes.io/name: opentelemetrycollector
    spec:
      containers:
        - name: otelcol
          args:
            - --config=/conf/collector.yaml
          image: otel/opentelemetry-collector:0.50.0
          volumeMounts:
            - name: collector-config
              mountPath: /conf
            - name: otel-collector-secrets
              mountPath: /etc/ssl/certs/server
            - name: root-ca
              mountPath: /etc/ssl/certs/ca
      volumes:
        - configMap:
            name: collector-config
            items:
              - key: collector.yaml
                path: collector.yaml
          name: collector-config
        - secret:
            secretName: otel-collector-secrets
          name: otel-collector-secrets
        - secret:
            secretName: root-ca
          name: root-ca

This will ensure that the OpenTelemetry collector can only accept encrypted data on the receiver endpoint.

Pass the flag transportCreds as the Secret name containing the ca.pem file (Empty string means insecure connection will be used).

Setting up Prometheus

Section titled “Setting up Prometheus”
  • For the metrics backend, you can install Prometheus on you cluster. For a general example, we have a ready-made configuration for you. Install Prometheus by running:
Terminal window
kubectl apply -k github.com/kyverno/grafana-dashboard/examples/prometheus
  • Port-forward the Prometheus service to view the metrics on localhost.
Terminal window
kubectl port-forward svc/prometheus-server 9090:9090 -n kyverno

Setting up Jaeger

Section titled “Setting up Jaeger”

The traces are pushed to the Jaeger backend on port 14250. To install Jaeger:

First install the Jaeger Operator. Replace the version as needed.

Terminal window
kubectl create namespace observability
kubectl create -n observability -f https://github.com/jaegertracing/jaeger-operator/releases/download/v1.33.0/jaeger-operator.yaml
kubectl wait --for=condition=Available deployment --timeout=2m -n observability --all

Create a Jaeger resource configuration as shown below

jaeger.yaml

apiVersion: jaegertracing.io/v1
kind: Jaeger
metadata:
  name: jaeger
  namespace: observability

Install the Jaeger backend

Terminal window
kubectl create -f jaeger.yaml

Port-forward the Jaeger Service on 16686 to view the traces.

Terminal window
kubectl port-forward svc/jaeger-query 16686:16686 -n observability

Grafana Dashboard

Section titled “Grafana Dashboard”

Setup

Section titled “Setup”

With Helm Chart

Section titled “With Helm Chart”
  • If your Grafana is configured with the discovery sidecar, set grafana.enabled value to true.
  • If you’re using Grafana Operator, set grafana.enabled to true and grafana.grafanaDashboard.enabled value to true.

See more configuration options here.

Without Helm Chart

Section titled “Without Helm Chart”
  • Download the dashboard’s JSON and save it in kyverno-dashboard.json
Terminal window
curl -fsS https://raw.githubusercontent.com/kyverno/kyverno/main/charts/kyverno/charts/grafana/dashboard/kyverno-dashboard.json -o kyverno-dashboard.json
  • Open your Grafana portal and go to the option of importing a dashboard.

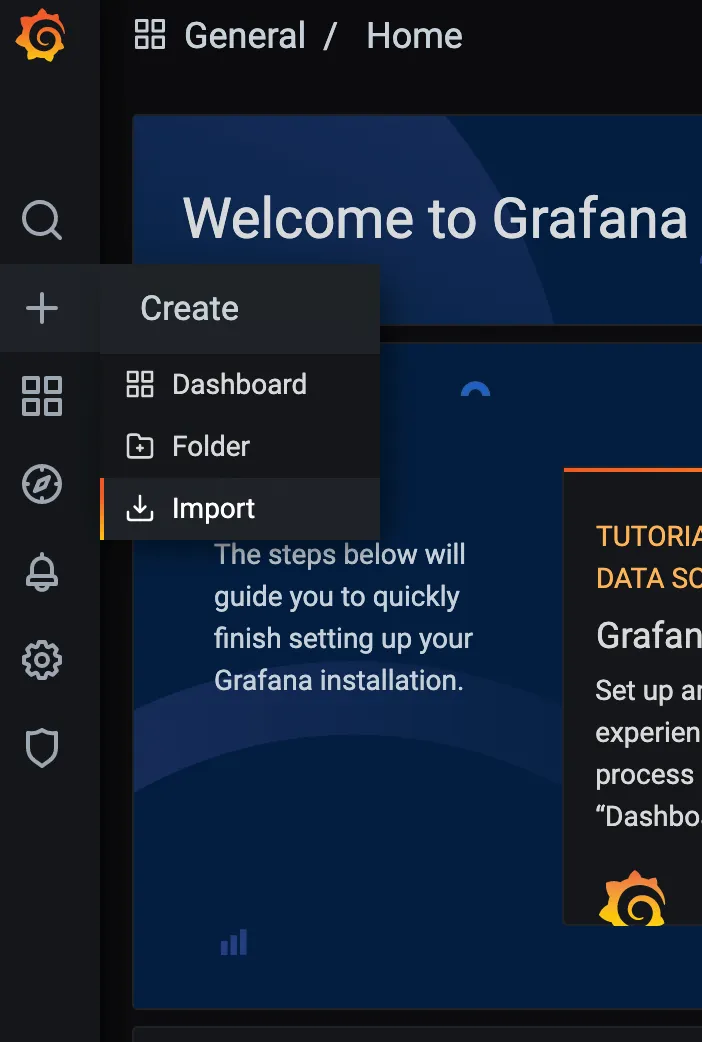

Dashboard step 1

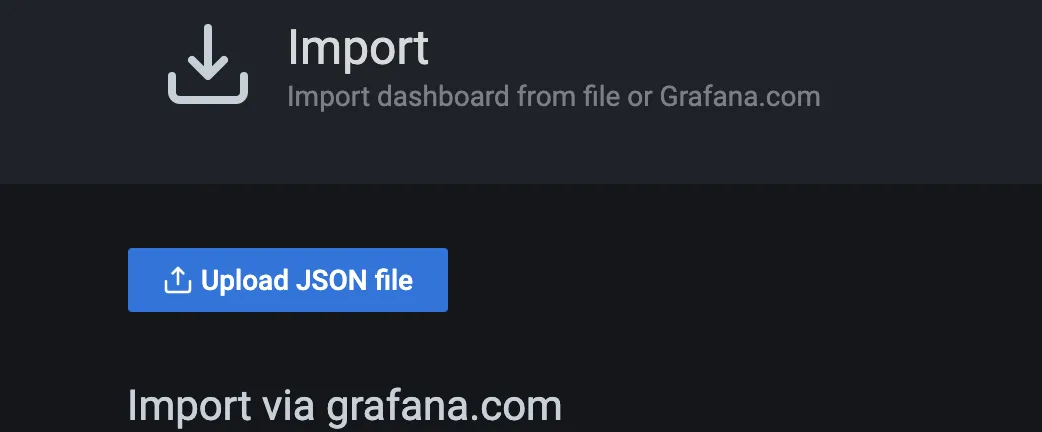

  • Go to the “Upload JSON file” button, select the kyverno-dashboard.json which you got in the first step and click on Import.

Dashboard step 2

  • Configure the fields according to your preferences and click on Import.

Dashboard step 3

  • And your dashboard will be ready in front of you.

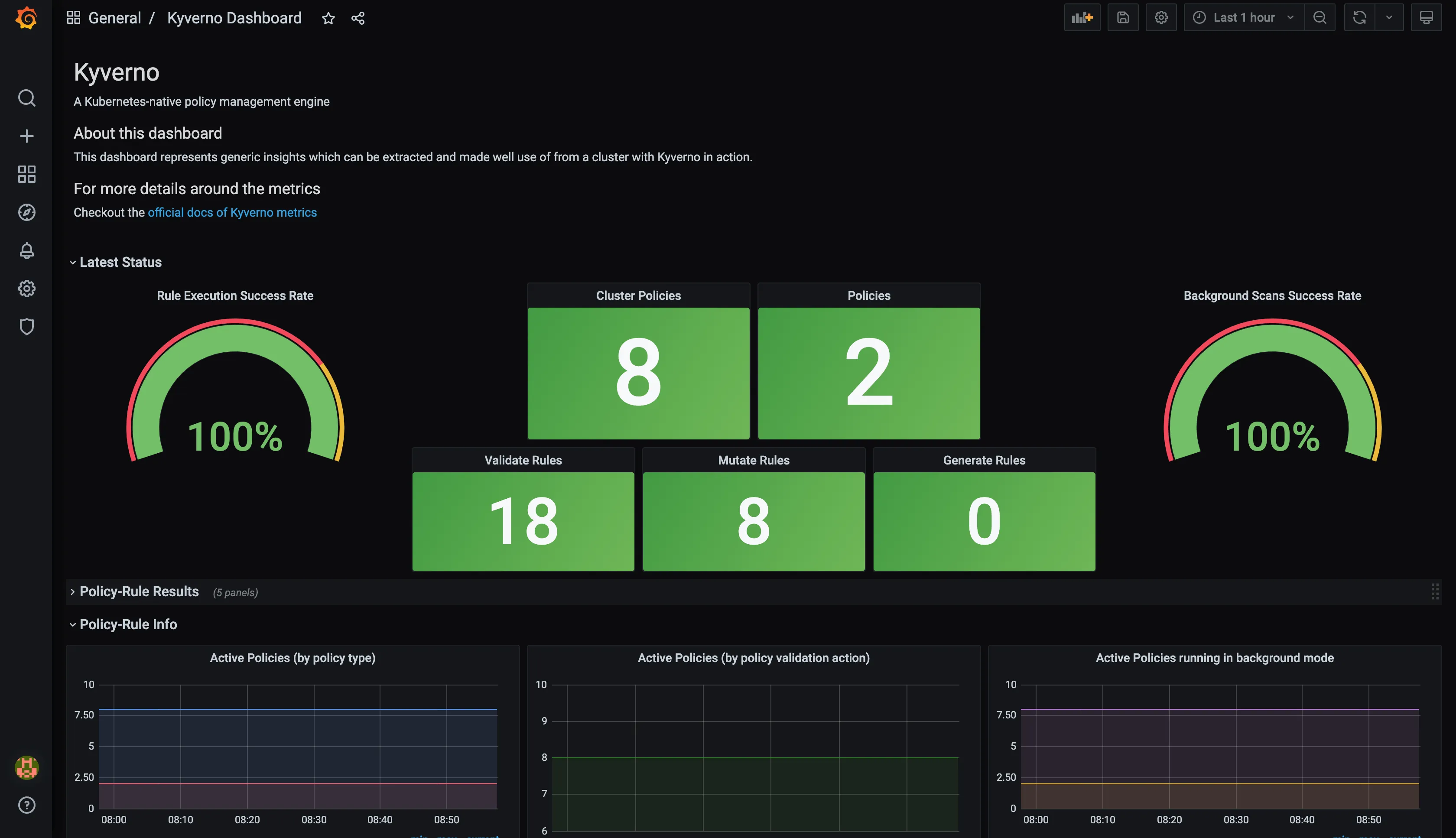

Dashboard example 1

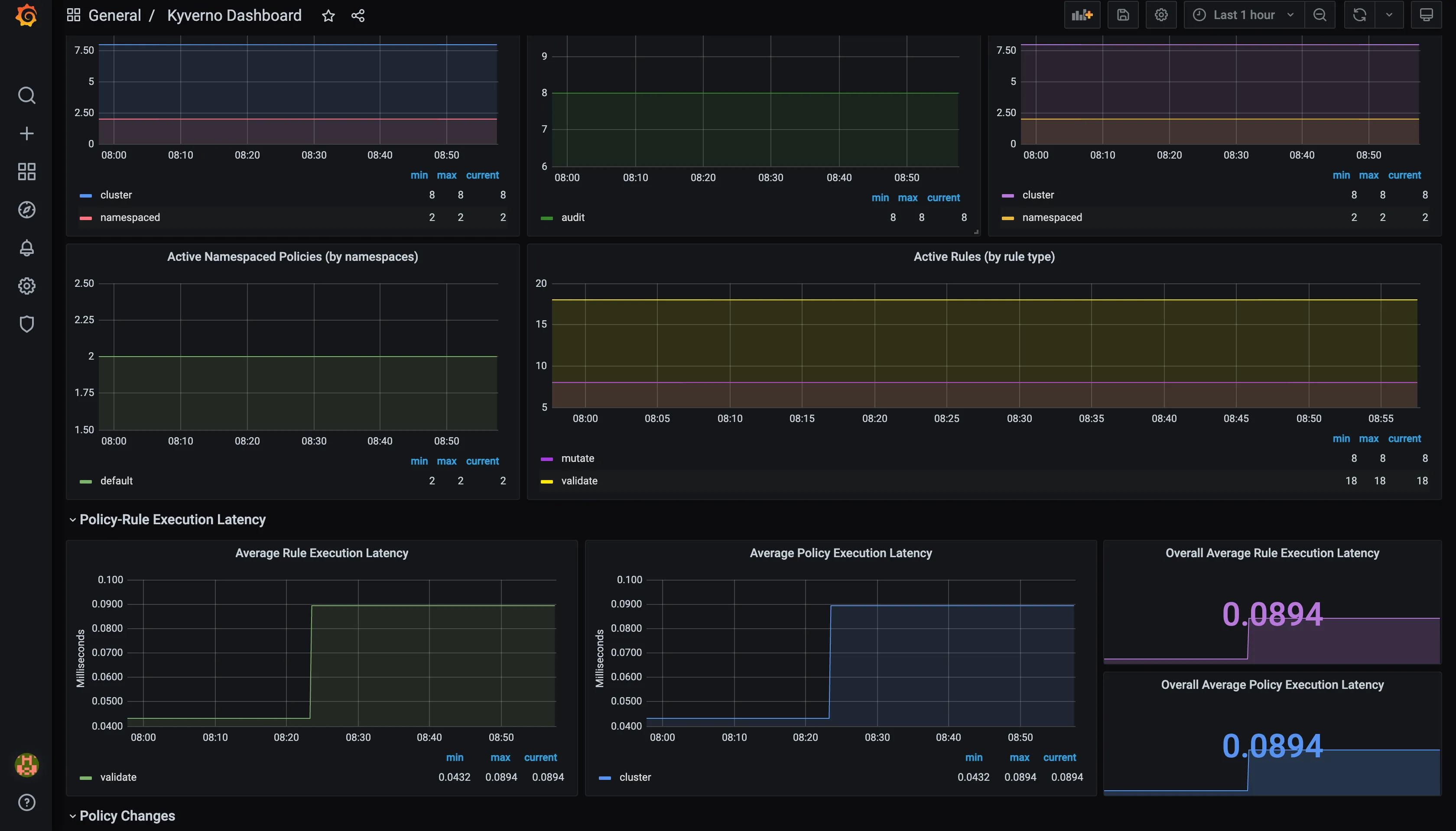

Dashboard example 2

Tutorial

Section titled “Tutorial”
Terminal window
kind create cluster

Add Helm repositories.

Terminal window
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo add kyverno https://kyverno.github.io/kyverno/

Update Helm repositories.

Terminal window
helm repo update

Install Kyverno and the kube-prometheus-stack Helm chart.

Terminal window
helm install kyverno kyverno/kyverno --namespace kyverno --create-namespace
helm install monitoring prometheus-community/kube-prometheus-stack -n monitoring --create-namespace


kubectl -n monitoring get po -l "release"

Create the ServiceMonitor resource.

Add the following contents to a file named service-monitor.yaml.

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  labels:
    app.kubernetes.io/instance: monitoring
    chart: kube-prometheus-stack-51.2.0
    heritage: Helm
    release: monitoring
  name: service-monitor-kyverno-service
  namespace: monitoring
spec:
  endpoints:
    - interval: 60s
      path: /metrics
      scheme: http
      targetPort: 8000
      tlsConfig:
        insecureSkipVerify: true
  namespaceSelector:
    matchNames:
      - kyverno
  selector:
    matchLabels:
      app.kubernetes.io/instance: kyverno

Add the appropriate labels.

Terminal window
kubectl label ns kyverno app.kubernetes.io/instance=kyverno
kubectl label ns kyverno app.kubernetes.io/name=kyverno

Create the ServiceMonitor.

Terminal window
kubectl apply -f service-monitor.yaml

Restart Deployments and StatefulSets in the monitoring Namespace.

Terminal window
kubectl rollout restart deploy,sts -n monitoring

Check services in the monitoring Namespace.

Terminal window
kubectl get svc -n monitoring


NAME                                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
monitoring-kube-prometheus-prometheus     ClusterIP   10.96.238.189   <none>        9090/TCP,8080/TCP            4h16m

Port forward the monitoring-kube-prometheus-prometheus Service to a local port.

Terminal window
kubectl port-forward svc/monitoring-kube-prometheus-prometheus 81:9090 -n monitoring


Forwarding from 127.0.0.1:81 -> 9090
Forwarding from [::1]:81 -> 9090

Similarly, port forward the monitoring-grafana Service to another local port.

Terminal window
kubectl get svc -n monitoring


NAME                                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
monitoring-grafana                        ClusterIP   10.96.188.20    <none>        80/TCP                       4h19m


kubectl port-forward svc/monitoring-grafana -n monitoring 82:3000


Forwarding from 127.0.0.1:82 -> 3000
Forwarding from [::1]:82 -> 3000

Go to Prometheus on port 9090 and check status -> Targets -> Filter for kyverno (to see if metrics are getting scraped)

Go to Grafana on port 3000 -> Dashboards -> New -> import -> Upload file that you get from running the below command -> Data type = Prometheus -> import

Terminal window
curl https://raw.githubusercontent.com/kyverno/grafana-dashboard/master/grafana/dashboard.json -o kyverno-dashboard.json
