Setup

With Helm Chart

• If your Grafana is configured with the discovery sidecar, set grafana.enabled value to true.
• If you’re using Grafana Operator, set grafana.enabled to true and grafana.grafanaDashboard.enabled value to true.

See more configuration options here.

Without Helm Chart

• Download the dashboard’s JSON and save it in kyverno-dashboard.json

curl -fsS https://raw.githubusercontent.com/kyverno/kyverno/main/charts/kyverno/charts/grafana/dashboard/kyverno-dashboard.json -o kyverno-dashboard.json

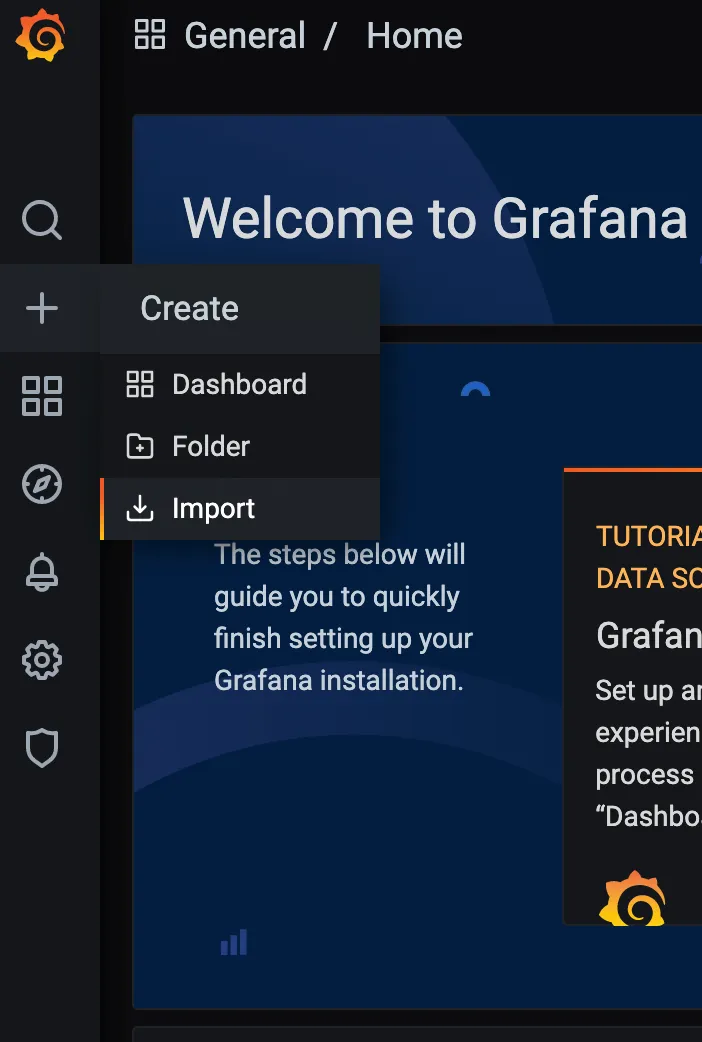

• Open your Grafana portal and go to the option of importing a dashboard.

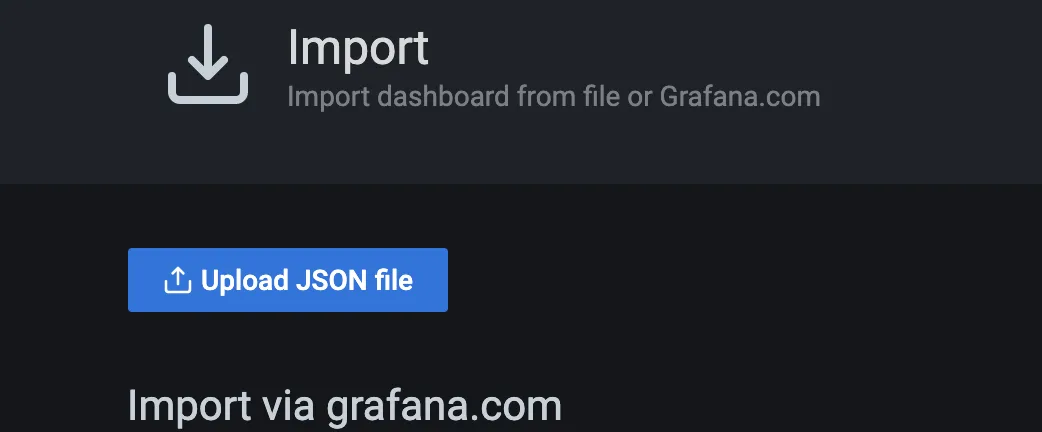

• Go to the “Upload JSON file” button, select the kyverno-dashboard.json which you got in the first step and click on Import.

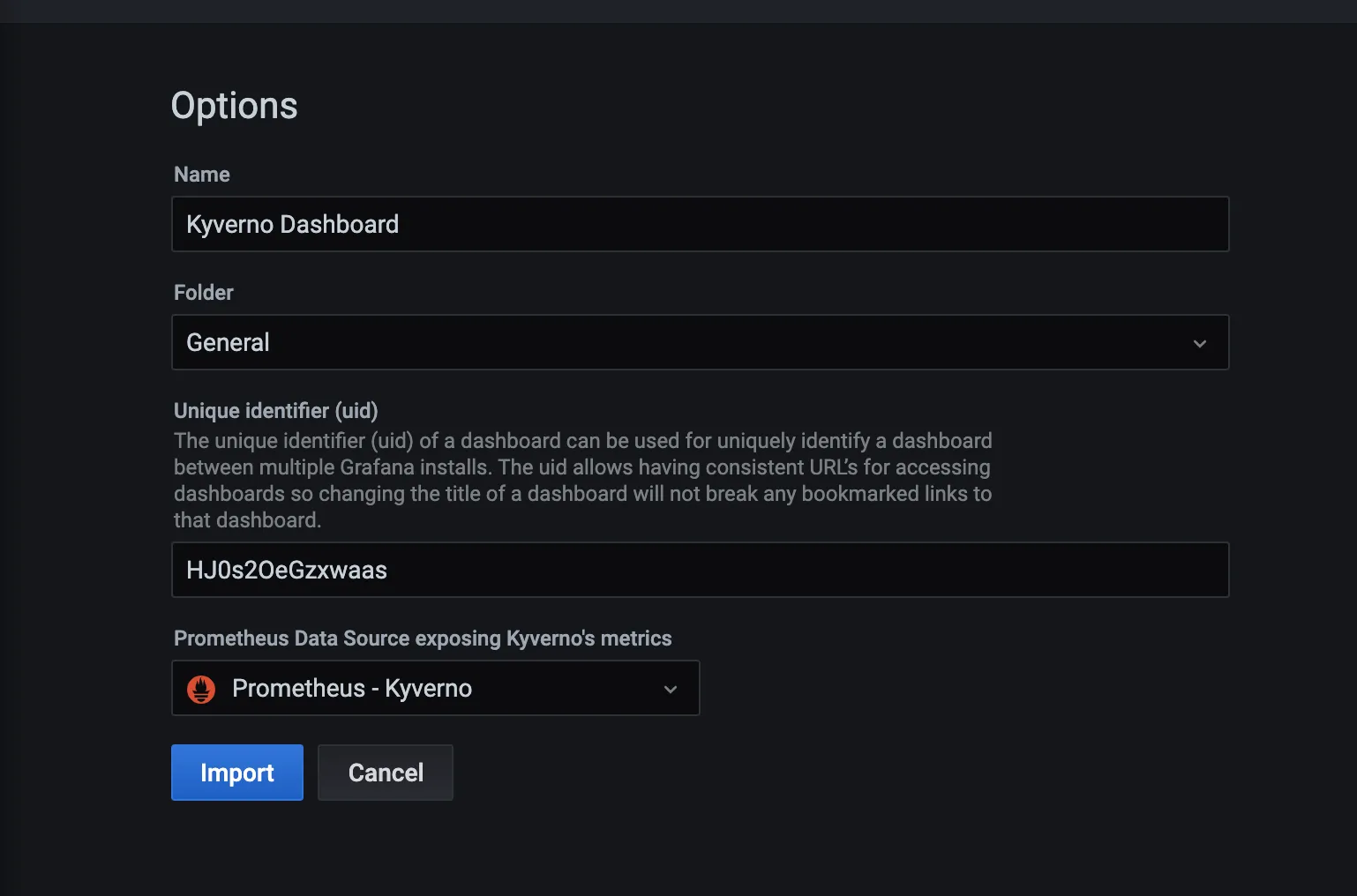

• Configure the fields according to your preferences and click on Import.

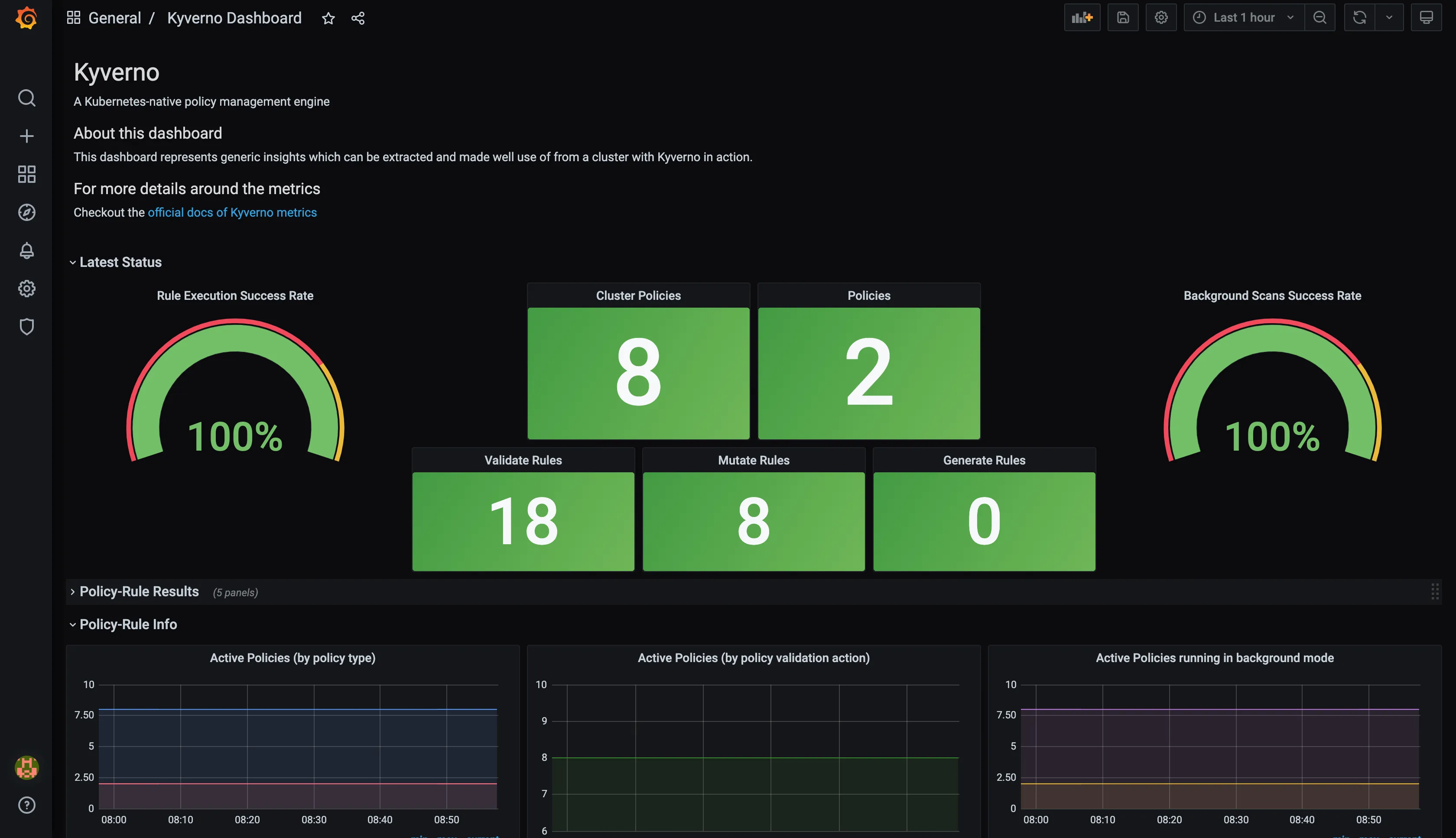

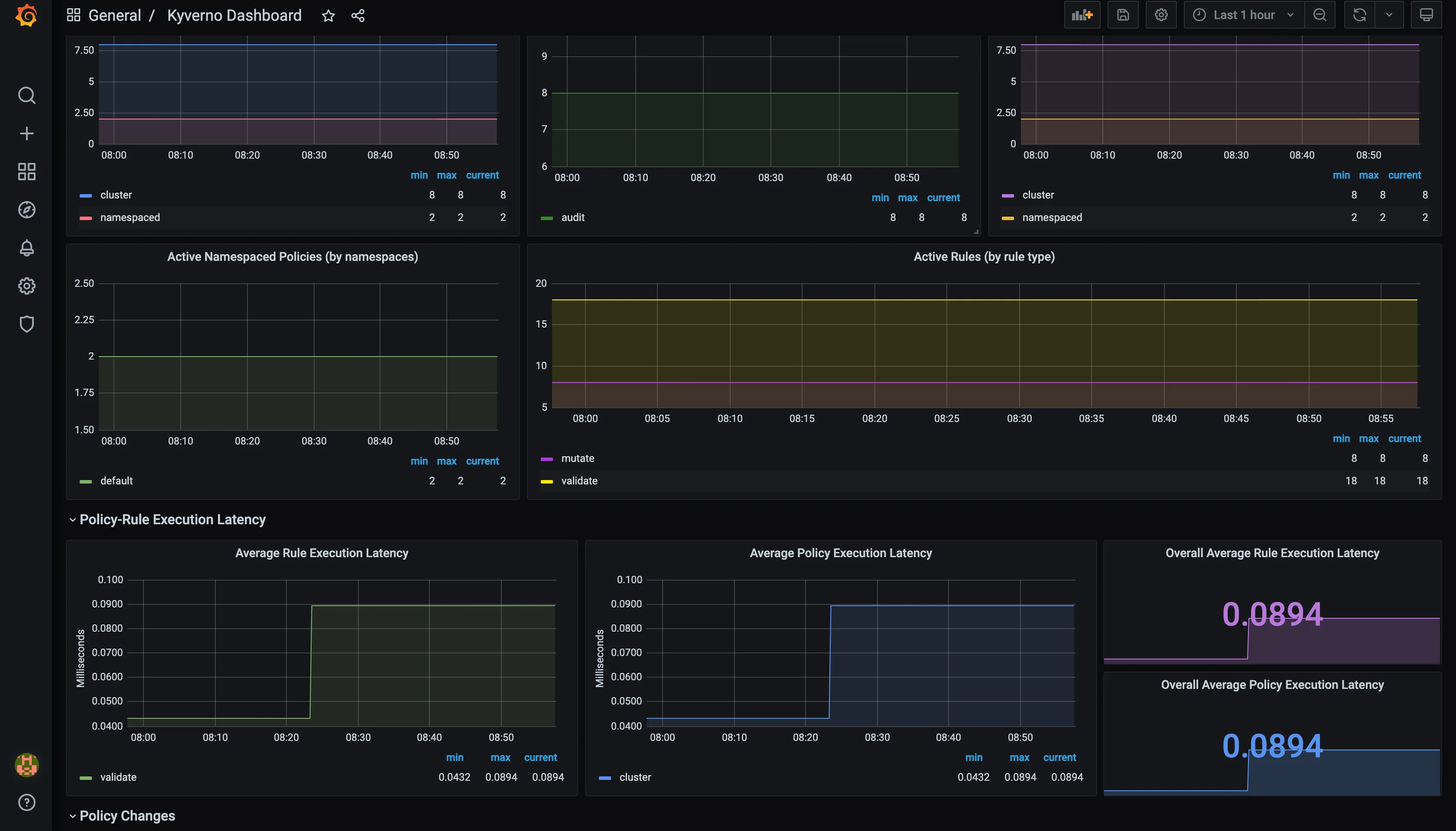

• And your dashboard will be ready in front of you.

Tutorial

kind create cluster

Add Helm repositories.

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo add kyverno https://kyverno.github.io/kyverno/

Update Helm repositories.

helm repo update

Install Kyverno and the kube-prometheus-stack Helm chart.

helm install kyverno kyverno/kyverno --namespace kyverno --create-namespace
helm install monitoring prometheus-community/kube-prometheus-stack -n monitoring --create-namespace

kubectl -n monitoring get po -l "release"

Create the ServiceMonitor resource.

Add the following contents to a file named service-monitor.yaml.

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  labels:
    app.kubernetes.io/instance: monitoring
    chart: kube-prometheus-stack-51.2.0
    heritage: Helm
    release: monitoring
  name: service-monitor-kyverno-service
  namespace: monitoring
spec:
  endpoints:
    - interval: 60s
      path: /metrics
      scheme: http
      targetPort: 8000
      tlsConfig:
        insecureSkipVerify: true
  namespaceSelector:
    matchNames:
      - kyverno
  selector:
    matchLabels:
      app.kubernetes.io/instance: kyverno

Add the appropriate labels.

kubectl label ns kyverno app.kubernetes.io/instance=kyverno
kubectl label ns kyverno app.kubernetes.io/name=kyverno

Create the ServiceMonitor.

kubectl apply -f service-monitor.yaml

Restart Deployments and StatefulSets in the monitoring Namespace.

kubectl rollout restart deploy,sts -n monitoring

Check services in the monitoring Namespace.

kubectl get svc -n monitoring

NAME                                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
monitoring-kube-prometheus-prometheus     ClusterIP   10.96.238.189   <none>        9090/TCP,8080/TCP            4h16m

Port forward the monitoring-kube-prometheus-prometheus Service to a local port.

kubectl port-forward svc/monitoring-kube-prometheus-prometheus 81:9090 -n monitoring

Forwarding from 127.0.0.1:81 -> 9090
Forwarding from [::1]:81 -> 9090

Similarly, port forward the monitoring-grafana Service to another local port.

kubectl get svc -n monitoring

NAME                                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
monitoring-grafana                        ClusterIP   10.96.188.20    <none>        80/TCP                       4h19m

kubectl port-forward svc/monitoring-grafana -n monitoring 82:3000

Forwarding from 127.0.0.1:82 -> 3000
Forwarding from [::1]:82 -> 3000

Go to Prometheus on port 9090 and check status -> Targets -> Filter for kyverno (to see if metrics are getting scraped)

Go to Grafana on port 3000 -> Dashboards -> New -> import -> Upload file that you get from running the below command -> Data type = Prometheus -> import

curl https://raw.githubusercontent.com/kyverno/grafana-dashboard/master/grafana/dashboard.json -o kyverno-dashboard.json
